Legendary Masonry Lubbock constructs commercial masonry retaining walls in Lubbock, TX for parking lots, building pads, and site grading. We follow engineered designs for CMU or brick faced walls, with proper drainage and reinforcement. Our retaining walls control soil while presenting a clean, professional appearance on your property.
Legendary Masonry Lubbock provides professional commercial masonry retaining walls throughout Lubbock, TX, Texas and the surrounding area. Our licensed, insured crew delivers safe, clean, on-time work with a free estimate before anything begins. Call 806-425-5011 or request your free quote.
Engineered Commercial Retaining Walls Built for Lubbock Conditions
Legendary Masonry Lubbock designs and builds commercial masonry retaining walls that are engineered for Lubbock’s clay soils, sudden rain events, and high winds. Our focus is on structure first, appearance second, so your project stays safe, code compliant, and low maintenance over the long term.
When you call us, we start on site, not on a sketchpad. We walk the property, look at existing grades, check drainage patterns after irrigation or storms, and locate utilities. For larger or more technical walls, we coordinate with a licensed structural engineer to confirm wall height, footing dimensions, surcharge loads, and reinforcement requirements. That way, the design is backed by calculations, not guesswork.
We help property managers, developers, and contractors solve real-world problems: holding parking lots in place, creating usable outdoor seating at restaurants, stabilizing slopes around office buildings, and protecting foundations at warehouses and industrial facilities. Each wall is laid out to match current and future site use, so you do not end up tearing it out to add a drive lane or expansion later.
Materials and Design Options for Commercial Masonry Retaining Walls
Commercial retaining walls must balance budget, aesthetics, and structural demands. Legendary Masonry Lubbock works with several proven systems so you can choose what fits your property.

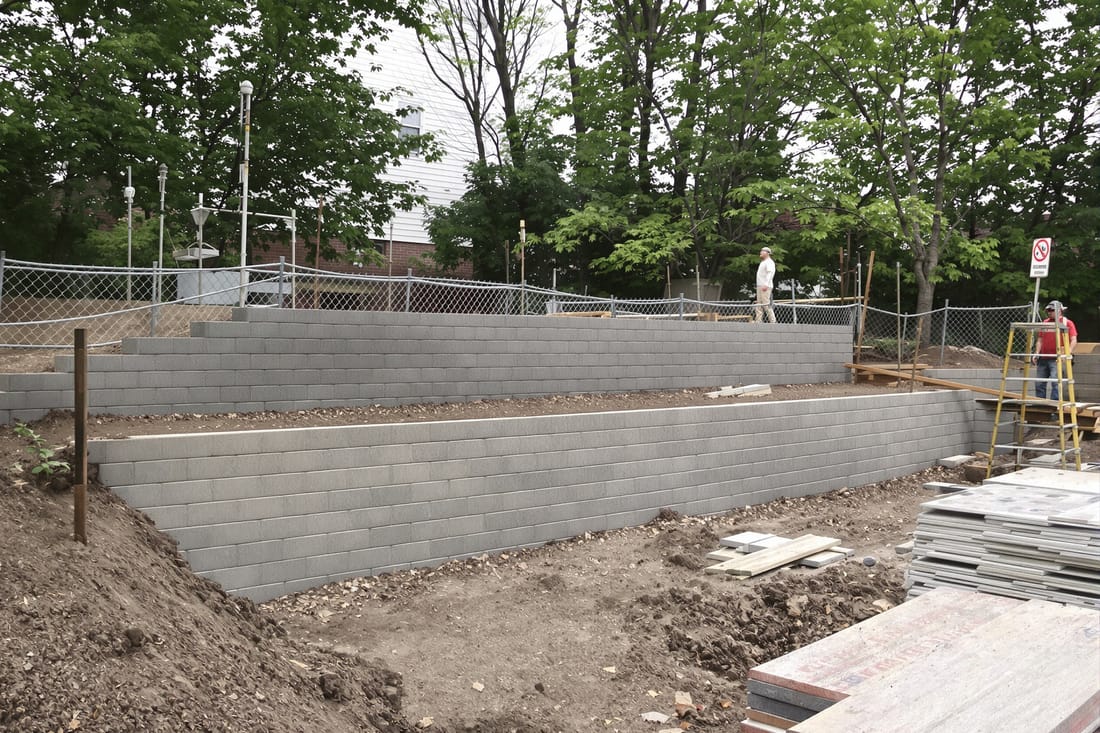

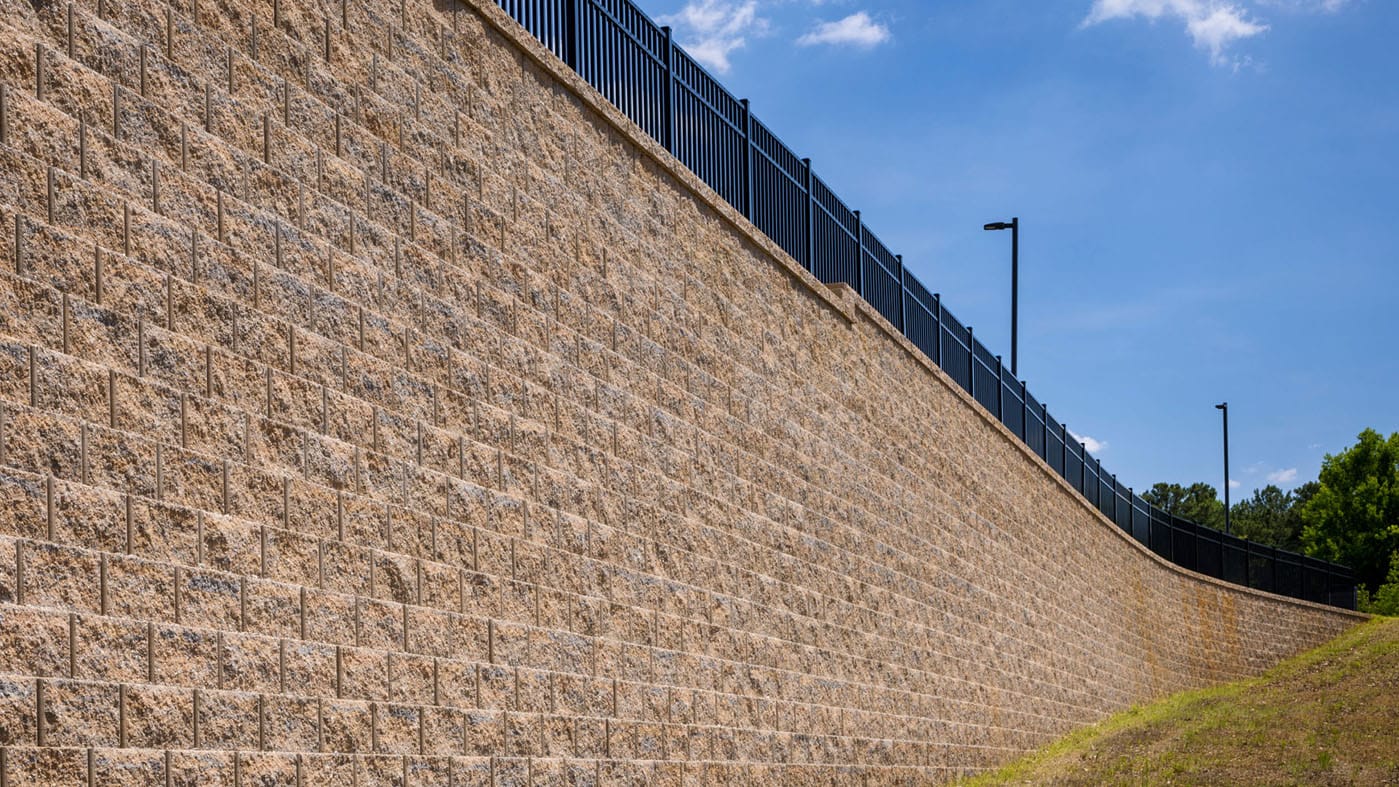

Segmental block retaining walls (concrete block units that interlock) are common around multifamily complexes, retail centers, and office parks. They handle curves well, can step with grades, and many lines are engineered for wall heights over 4 feet when properly reinforced and drained.
Cast-in-place concrete retaining walls are ideal where space is tight or loads are high, for example around loading docks or near building foundations. Concrete can be formed thin relative to height, which maximizes usable space. We can leave it smooth, apply a textured form liner, or face it with stone or brick veneer for a higher-end look.
Masonry gravity walls in concrete masonry units (CMU) or block with stone veneer work well for low to medium heights, especially where appearance matters along public facades or entry drives. We often combine masonry walls with integrated guardrails, fencing, or seating elements so the structure does more than just hold soil.
On every project, we review wall height, backfill type, nearby pavements and structures, and desired finish. Then we recommend a system that meets performance requirements and looks appropriate for your retail, industrial, hospitality, or multifamily site.
Our Step-by-Step Commercial Retaining Wall Process
Legendary Masonry Lubbock uses a straightforward but rigorous process to keep commercial retaining wall projects predictable and efficient.
Planning and layout: After the initial site visit, we gather any civil plans, grading plans, and geotechnical reports. We mark wall alignment and verify elevations so the wall ties into existing sidewalks, parking lots, and building pads correctly.
Engineering and permitting: For walls above certain heights or in critical locations, we coordinate with your engineer or ours to produce stamped drawings if required. In Lubbock, commercial retaining walls over 4 feet measured from the bottom of the footing typically need engineering and may be reviewed as part of the overall site plan. We prepare submittals, product data, and shop drawings as needed.
Excavation and base preparation: We excavate to plan depth, over-excavate soft areas, then place compacted crushed stone or engineered base. A level, dense base is critical; even a small tilt at the bottom multiplies at the top of a tall wall.
Wall construction and reinforcement: We build in lifts, place geogrid or steel reinforcement according to design, and align units carefully. For segmental walls, we keep setback and coursing consistent so the wall drains and performs as intended. For concrete or CMU walls, we set rebar, form, pour, and grout on a strict schedule.
Drainage and backfill: As we raise the wall, we install perforated drain tile, clean rock, and filter fabric, then compact backfill in layers behind the wall. This step is what prevents hydrostatic pressure from building up and causing bulges or failures.
Final tie-ins: We connect the wall to adjacent pavements, install caps or coping, and complete any railings or fences that sit on or behind the wall. The final result is a clean, stable transition that integrates with the surrounding site.
What Drives Cost for Commercial Masonry Retaining Walls in Lubbock
Retaining wall pricing is driven by more than just height. Legendary Masonry Lubbock walks you through the real cost factors so you can plan budgets accurately and avoid surprises.
Wall height and loading: Taller walls and walls that support traffic, structures, or steep slopes require more engineering, more reinforcement, and more geogrid, which increase cost per foot. A 3 foot landscape wall behind a sidewalk is very different from a 10 foot wall holding up a parking lot.
Access and logistics: If the work area is behind existing buildings or on an active site, moving equipment and materials can take more time. Tight access sometimes means smaller machinery or handwork, which can add labor.
Soil conditions and drainage: Poor native soils, expansive clays, or existing fill that was never compacted correctly often require over-excavation, soil replacement, or thicker base layers. If stormwater needs to be rerouted or tied into an existing system, there is added pipe and labor.
Material selection and finish: Standard segmental concrete blocks are generally more economical than custom stone facings or architectural veneers. Integrating guardrails, fences, or decorative caps will add cost, but can also reduce the need for separate structures elsewhere on the site.
Schedule: On active commercial projects, we often work around tenants, deliveries, and other trades. Accelerated schedules, night work, or tight sequencing may raise costs, and we discuss this upfront so your construction timeline is realistic.
Local Codes, Permits, and Inspections for Lubbock Commercial Sites
Commercial retaining walls are part of a larger site system, so they must align with local codes, drainage requirements, and in some cases, insurance and lender expectations. Legendary Masonry Lubbock is familiar with how retaining walls fit into Lubbock’s permitting and inspection framework.
On new commercial developments, retaining walls are usually shown on the civil engineer’s site and grading plans. During the plan review process, the city may look for engineered details, especially for walls over 4 feet, walls supporting vehicles, or walls near property lines. We coordinate our work with your civil and structural team so what we build matches the approved plans.
Inspections often occur at footing or base preparation, reinforcement placement, and final completion. When geogrid is specified, inspectors or engineers of record may want to see product labels and installation patterns. We welcome those checks and document what is installed so you have a clear record for your closing package or future renovations.
For existing properties, especially older shopping centers or apartments, adding or modifying a retaining wall can trigger review if it affects drainage or accessibility slopes. We help you determine whether a permit is required for your scope of work and can provide drawings, product data, and as-built photos for your files.
Common Retaining Wall Problems We Prevent and Repair
A failing commercial retaining wall can create safety issues, trip hazards, and liability exposure. Legendary Masonry Lubbock spends as much effort preventing these issues as we do fixing them when they already exist.
Bulging or leaning walls: Often caused by poor drainage, inadequate reinforcement, or improper backfill compaction. We design walls with proper drainage paths, specify the right geogrid lengths, and insist on compacted granular backfill where needed. For existing walls, we can assess whether partial rebuilds, tie-back systems, or complete replacement is the safest option.
Cracking and settlement: In cast-in-place or CMU walls, long runs without joints or poor foundation preparation can lead to cracks and differential settlement. We cut control joints where appropriate, build on properly compacted subgrade, and size footings to handle Lubbock’s expansive soils.
Water staining and erosion: Missing or clogged drains can cause water to escape at random points, eroding soil and staining the wall face. We install cleanouts on longer walls, use filter fabric correctly, and slope the finished grade to move surface water away from the structure.
Code and guardrail issues: Taller walls near sidewalks, parking lots, or stairs often require guardrails or barriers. We can integrate post pockets or mounting plates into the wall so guardrails meet safety requirements without awkward retrofits later.
Why Partner With Legendary Masonry Lubbock for Your Commercial Project
Choosing a contractor for commercial masonry retaining walls is about risk management as much as appearance. Legendary Masonry Lubbock focuses on building walls that perform for decades, not just through the first warranty period.
We are comfortable working under general contractors, directly for owners, or as part of design-build teams. Our crews are used to active job sites with other trades and tenants present, so we schedule noisy work, coordinate deliveries, and maintain safe access routes.
Before we price your project, we ask detailed questions about intended wall heights, traffic loads, nearby structures, drainage tie-ins, and long-term site plans. This helps avoid change orders later. During construction, we keep lines of communication open with your project manager or facility manager, providing progress updates and addressing any unforeseen conditions immediately.
At turnover, we can walk your team through basic maintenance for commercial retaining walls: keeping weep holes clear, watching for unusual movement, and managing landscaping near the wall so roots and irrigation do not create problems. Our goal is a structure that quietly does its job, protects your investment, and improves the function and appearance of your property in Lubbock for many years.
